Powerlift Elevator Series

Our Powerlift Elevator series is your ideal portable vacuum for large cleanup applications. Powerlift Elevator Series Units come standard with an adjustable support structure to accommodate different disposal containers. This custom configuration allows you to raise the support structure while operating and lower the structure for transport.  Ideal for Super Sacks & dump hoppers. Up to 16" HG" of continuous vacuum. Need to move mountains of material, this is the unit. Powerlift Elevator Series Vacuums are great for bulk conveying over short or long distances. The Powerlift Elevator Series can be configured to have on-demand pulse cleaning allowing the unit to continuously filter fine particulate. The Elevator Series can also be equipped with an explosion vent and a flame quench making the unit ideal for hazardous and explosive material handling.

Features

  • Dependable cast iron Positive Displacement pump
  • Guaranteed 24-Hour per-day operation
  • Abrasion-resistant Inlet wear plate
  • TEFC High-efficiency motors - standard
  • Primary filtration efficient to 1 micron
  • Built-in Forklift channels for easy transport
  • Built-in Forklift channels for raising and lowering baghouse
  • First stage cyclonic internal separation
  • Secondary In-Line filter - Standard
  • All units runs under 86 DBA
  • Special high volume separators for your large recovery applications

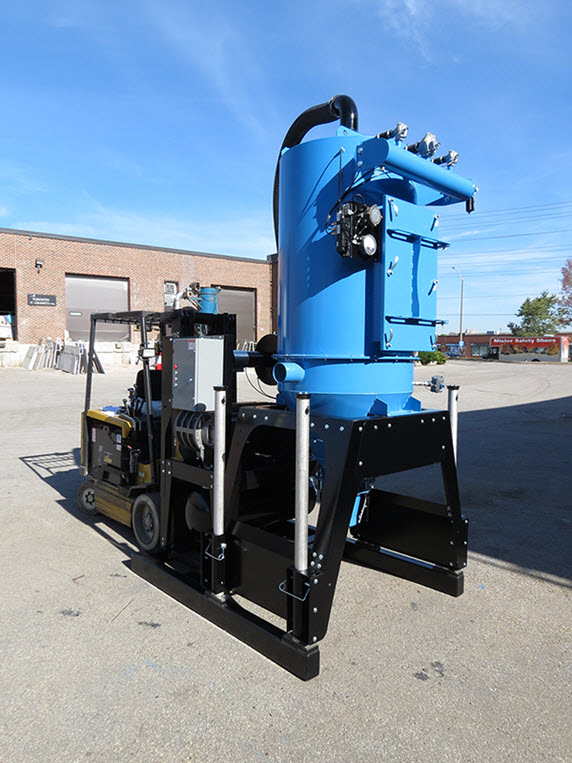

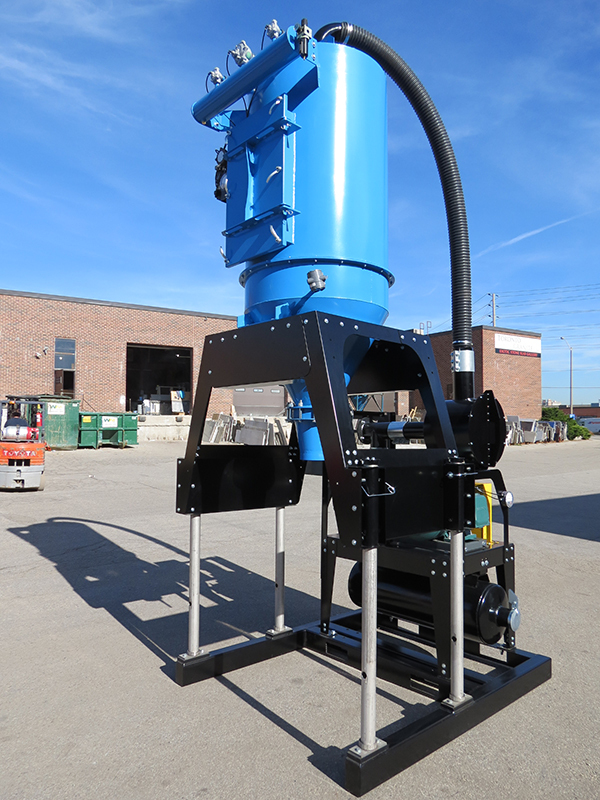

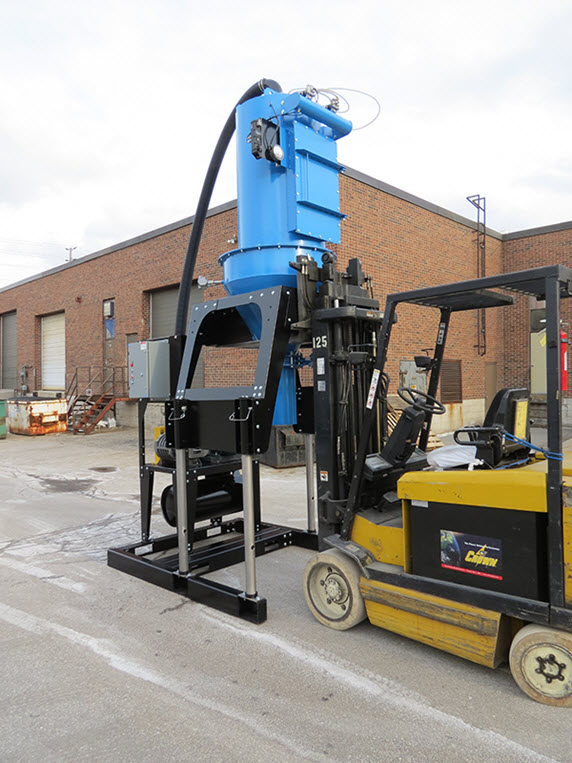

Photo Gallery

SPECIFICATIONS

MODEL CAPACITY CFM WATERLIFT POWER NOISE LEVEL Primary Filter Area WEIGHT
EL-20 55 USG 400 16" HG 230-460/3 85 85.5 SQ FT 2360 LBS
EL-25 55 USG 525 16" HG 230-460/3 85 85.5 SQ FT 2550 LBS
EL-30 55 USG 650 16" HG 230-460/3 85 85.5 SQ FT 2860 LBS
EL-40 55 USG 860 16" HG 230-460/3 86 121  SQ FT 3080 LBS

OPTIONS

  • In-Line HEPA Filtration available
  • Explosion-Proof Motors & NEMA 7/9 Starters
  • On-Demand Pulse Cartridge Cleaning System
  • Rotary Airlock
  • Regenerative Vacuum producers
  • Central vacuum system tube & fittings
  • Gas or Diesel Powered Units
  • Complete assortment of 2", 3" & 4" Hose & Bulk Cleaning Tools
