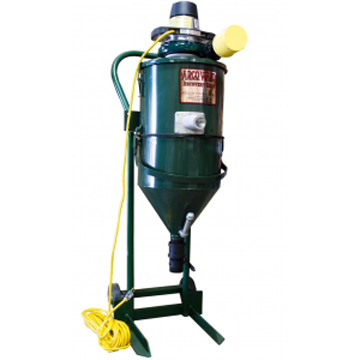

Arco Wand P-85 Electric Vacuum

These high-performance, yet compact units are ideal for portable flux recovery. The air powered unit can run continuously and creates high vacuum levels. The electric unit runs off standard 115V power and is rated for intermittent use.

Features

  • Slag Screens
  • 150 LB Hopper capacity
  • 2" Cast Manual Dump Valve
  • Heavy Duty Hand Truck & Wheels
  • Oversized Heavy Duty Cloth Filter
  • Quiet Operation
  • Choose electric or air operated
  • Powder Coat Finish
  • Stationary Units Available

SPECIFICATIONS

Model  P-85-P
System Horsepower 1.5 HP
Recovery rate with 1-1/2" x 10’ Hose 30 lbs per min
Performance 50" Waterlift & 196 CFM
Voltage/Phase 115/220/1/60
Dimensions L, W , H 57" H x 20" W
Hopper Capacity 150 lbs
Inlet Size 1.5"
Weight 100 lbs.
