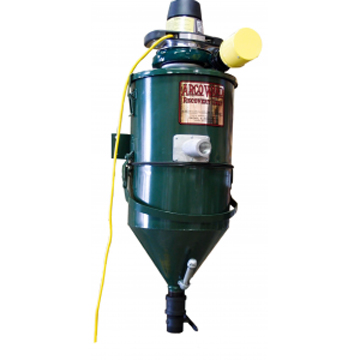

Arco Wand F-85-P Electric Vacuum

The F-85-P allows for single phase operation on an intermittent duty cycle. The 1.5HP heavy duty motor our performs all others in its class. The compact design allows for mounting in even the tightest spaces. Patented inlet design reduces premature tank wear.

Features

  • Slag Screen with handle
  • 150 LB Hopper capacity
  • 2" Cast Manual Dump Valve
  • Extended flanges for Overhead Mounting
  • Oversized Heavy Duty Cloth Filter
  • Discharge Muffler
  • Choose electric or air operated
  • Powder Coat Finish
  • Portable Units Available

SPECIFICATIONS

Model  F-85-P
System Horsepower 1.5 HP
Recovery rate with 1-1/2" x 10' Hose 30 lbs per min
Performance 50" Waterlift & 196 CFM
Voltage/Phase 115/1/60
Dimensions L, W , H 50" H x 15" W
Hopper Capacity 150 lbs
Inlet Size 1.5"
Weight 100 lbs.
