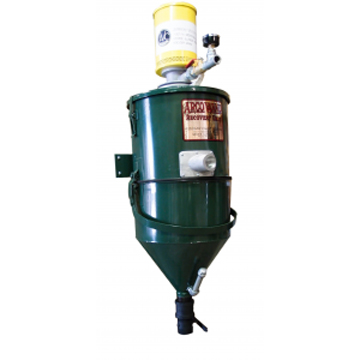

The F-85 Air flux recovery unit operates off your existing compressed air supply. Choose from 3 different venturis to accommodate your compressed air supply. 2-stage filter system assures you that all flux fines stay within the unit. No moving parts means a lifetime of trouble free operation.
Features
- Slag Screen
- 150 LB Hopper capacity
- 2" Cast Manual Dump Valve
- Extended flanges for Overhead Mounting
- Oversized Heavy Duty Cloth Filter
- Quiet Operation
- Choose electric or air operated
- Powder Coat Finish
- Portable Units Available
SPECIFICATIONS
| Model | F-85-P |
|---|---|
| System Horsepower | Air |
| Recovery rate with 1-1/2" x 10' Hose | 40 lbs per min |
| Performance | 180" Waterlift & 110 CFM |
| Comp. Air Req'd | 90PSI @ 40CFM |
| Dimensions L, W , H | 50" H x 15" W |
| Hopper Capacity | 150 lbs |
| Inlet Size | 1.5" |
| Weight | 70 lbs. |
