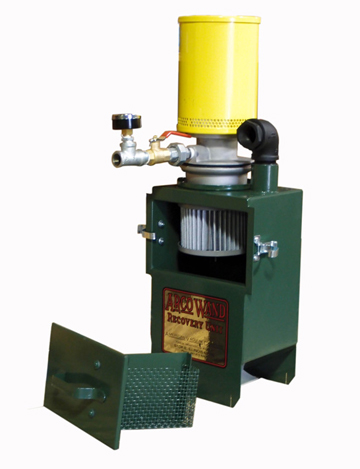

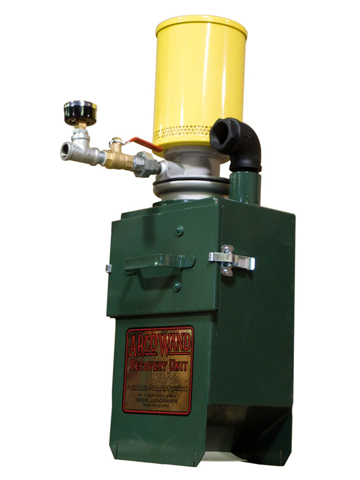

Arco F-100 Air Operated Flux Recovery Unit

The F-100-AIR is a direct hopper mount flux recovery unit. Unit runs on your existing compressed air. Choose from 3 different sized venturi jets to accommodate your compressed air supply. 2 stage filtration system is unique to the industry.

Features

  • Patented venturi powerhead
  • Adapts to any weld hopper
  • Flux Discharges into weld hopper when the unit is turned off
  • 3 Different venturi jets to choose from
  • Oversized, heavy-duty cartridge filter
  • Unit can be mounted right or left handed
  • Slag screen standard
  • Guaranteed 24 hours per day operation
  • Powder coat finish paint

Photo Gallery

SPECIFICATIONS

 Model F-100-Air
Compressed Air Req'd: 90PSIG @ 40SCFM
CFM (Maximum) 145 CFM
Vacuum (Maximum) 180" H2O
Airline Size ½"
Dimensions L, W , H 26" x 7.5" x 9"
Flux Storage Capacity 25 Lbs.
Flux Recovery Rate 65 lbs per min
Weight 45 lbs.

Options

  • Magnetic Separator available
  • ½" Supply air hose available
  • Special fine dust filters
  • Complete selection of 1-1/2" recovery tools
