Arco F-100 Electric Flux Recovery Unit

The F-100 is a direct hopper mount flux recovery unit. It is light, compact, simple in operation and powerful enough to do an excellent recovery job.


  • 1 HP By-pass motor
  • 115V Operation
  • Flux discharges into weld hopper when the unit is turned off
  • Oversized, heavy-duty cartridge filter
  • Filter efficiency of 99% @ 2 microns
  • Unit can be mounted right or left handed

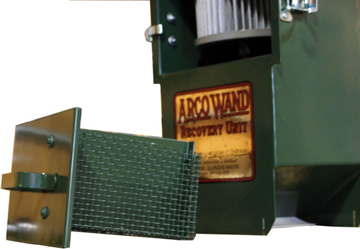

  • Unit comes standard with removable slag screen
  • Adapts to any weld hopper
  • Powder coat finish paint

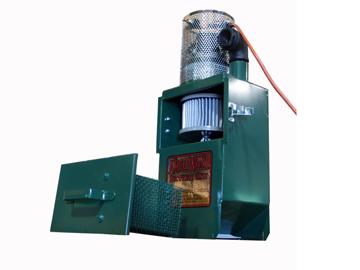

Photo Gallery


 Model F-100 1HP
System Horsepower 1.0 HP
CFM (Maximum) 100 CFM
Vacuum (Maximum) 88" S.P.
Voltage/Phase 115 / 1
Dimensions L, W , H 24" x 8" x 9"
Flux capacity 25 pds
Flux Recovery Rate 25 pds per min
Weight 30 lbs.


  • Magnetic separator
  • 50' of power cable
  • Special fine dust filters
  • Complete selection of 1½" Recovery tool
