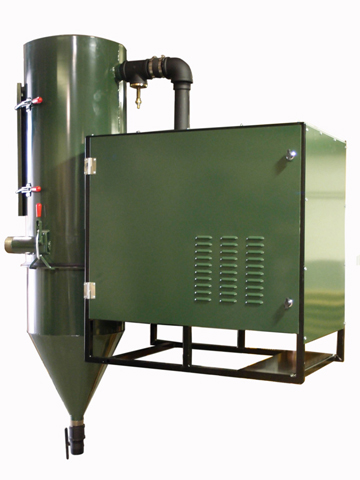

Arco Wand MH Series

The MH Series Flux Recovery Units range from 1 1/2 HP to 7 1/2 HP and are built for overhead mounting applications. The tank is equipped with a slag screen and hopper bucket. The quick open valve at the bottom of the hopper allows for very rapid filling of flux hopper. This unit can be arranged for continuous operation. That is, simultaneous pick-up and feedback of flux. Special breather port to prevent bridging of flux.

Features

  • Positive displacement vacuum pump
  • High Vacuum 7.5 to 9.0" Hg
  • TEFC 1800 rpm high-efficiency motor
  • Highest flux recovery rate on the market
  • Filter efficiency of 99% @ 0.4 microns, standard
  • Motor for 50 or 60 cycle
  • Vacuum relief valve – prevents motor overload
  • Guaranteed 24 hours per day operation
  • Totally enclosed – Panels on all sides
  • Powder coat finish paint

SPECIFICATIONS

  615MH 620MH 630MH 650MH 675MH
System Horsepower 1.5 HP 2.0 HP 3.0 HP 5 HP 7 ½ HP
Recovery rate with 1-1/2" x 25' Hose 40 lbs per min 45 lbs per min 55 lbs per min 60 lbs per min 75 lbs per min
Vacuum 7.0" HG (96" H2O) 7.0 "HG (96" H2O) 8.0” HG 110" H2O) 8.0" HG (110" H2O) 9.0 "HG (124" H2O)
Voltage/Phase 230/460/3/60 230/460/3/60 230/460/3/60 230/460/3/60 230/460/3/60
Dimensions L, W , H 54" x 22" x 67" 54" x 22" x 67" 54" x 22" x 67" 54" x 22" x 67" 54" x 22" x 69"
Hopper Capacity 150 lbs 150 lbs 150 lbs 150 lbs 150 lbs
Noise Level @ 3ft 75 DBA 77 DBA 78 DBA 78-80 DBA 81-83 DBA
Weight 620 lbs. 625 lbs. 720 lbs. 730 lbs. 750 lbs.

Options

  • Recovery from multiple welding heads
  • Complete line of pick-up tools
  • Flux band heaters available
  • Specially fabricated overhead separators
