Series 9050

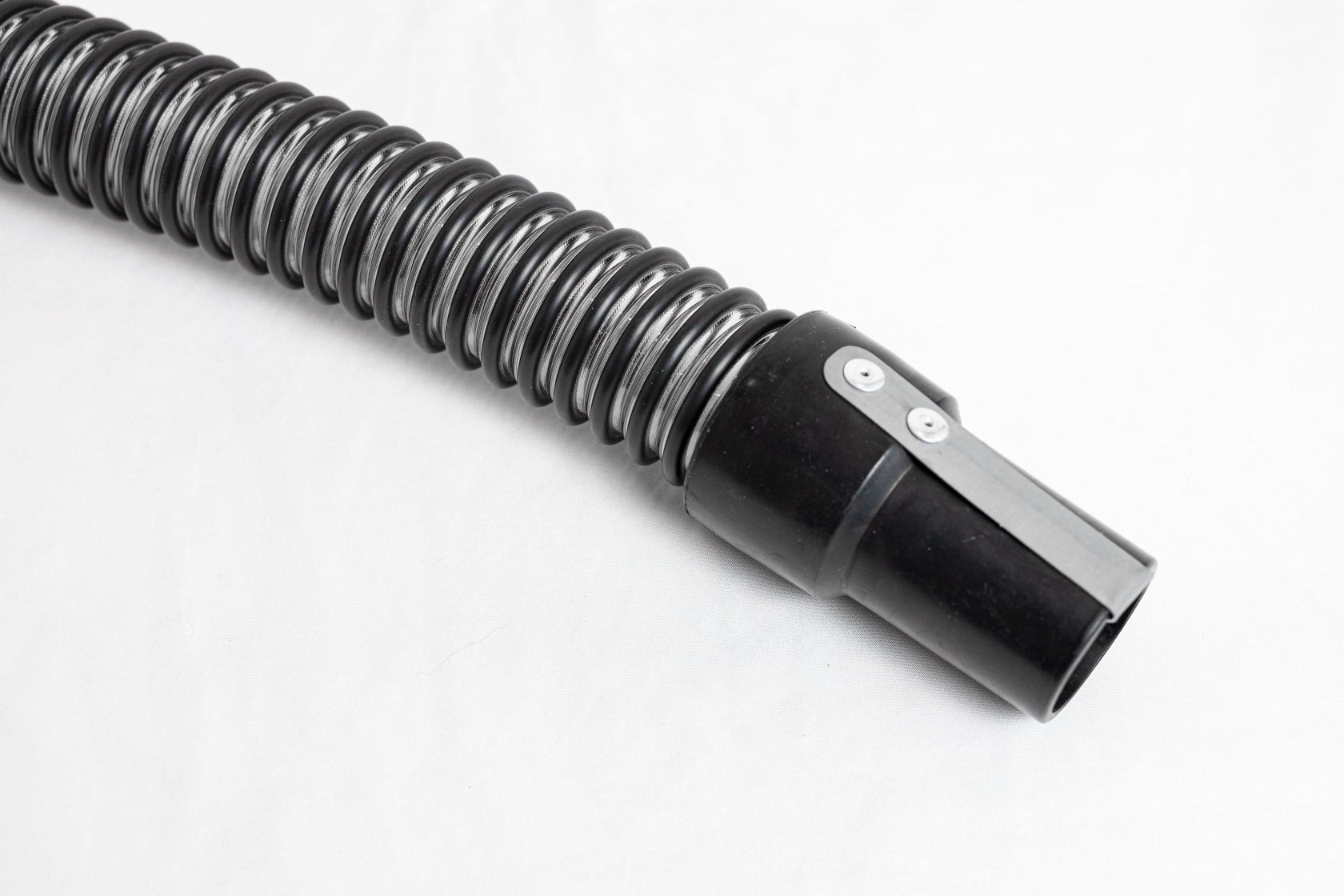

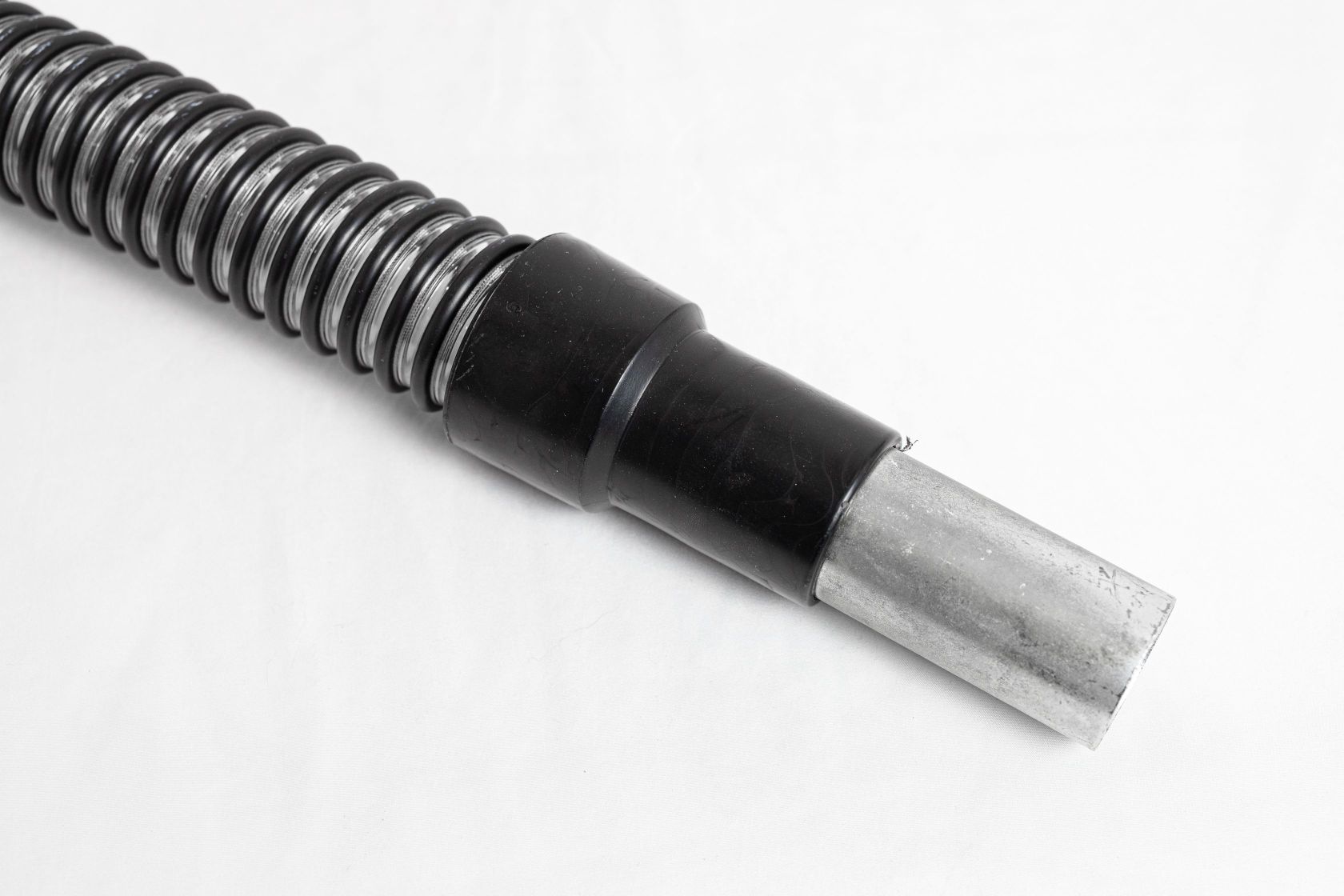

Clear static grounded thermoplastic polyurethane hose reinforced with rigid black external ABS helix & embedded copper braided grounding wire. The hose comes completely grounded with direct metal contacts at both ends. Vacuum hose is for medium to heavy duty applications.



Features

  • Extremely flexible with great abrasion resistance
  • Smooth interior assures minimal friction loss, efficient air flow & elimination of material build-up
  • Enclosed copper braided grounding wire reduces static build-up and disperses static charge to metal groudning.
  • Permanent and non-humidity dependent ESD ( electrostatic discharge) protection
  • Surface Resistivity Level 10^8- 10^ 10 Ohms/ Sqaure
  • Manufactured with FDA acceptable materials
  • Wall Thickness= .040"
  • Static conductive cuffs
  • Available in 1-1/2" through 6" Diameters

Lengths

Diameter (ID) 10' 15' 25' 50'
1-1/2" S9050 11/2 x 10 S9050 11/2 x 15 S9050 11/2 x 25 S9050 11/2 x 50
2" S9050 2 x 10 S9050 2 X 15 S9050 2 X 25 S9050 2 X 50
2-1/2" S9050 21/2 X 10 S9050 21/2 X 15 S9050 21/2 X 25 S9050 21/2 X 50
3" S9050 3 X 10 S9050 3 X 15 S9050 3 X 25 S9050 3 X 50
4" S9050 4 X 10 S9050 4 X 15 S9050 4 X 25 S9050 4 X 50
5" S9050 5 X 10 S9050 5 X 15 S9050 5 X 25 S9050 5 X 50
6" S9050 6 X 10 S9050 6 X 15 S9050 6 X 25 S9050 6 X 50

NOTE: The hose part numbers are included in the chart.
