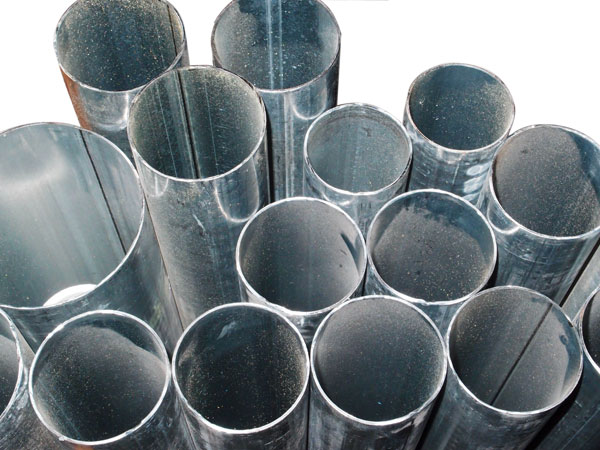

Industrial Vacuum Tubing

Our standard catalog items include sizes from 1-1/2" OD through 14" OD in carbon, zinc coated (galvanized) and stainless steel, as well as aluminum. Plus fast delivery is available on a wide selection of stock tubing. We also make every effort to meet emergency requirements for non-stock items.



STANDARD TUBING

OD Gauge Wall Thickness Carbon Zinc/Galv. Coated Stainless Aluminum
1-1/2" 16 .065" 16WT150C 16WT150Z 16WT250S 16ST150A
1-1/2" 11 .120" 11WT150C 11WT150Z 11WT150S 11ST150A
2" 16 .065" 16WT200C 16WT200Z 16WT200S 16ST200A
2" 11 .120" 11WT200C 11WT200Z 11WT200S 11ST200A
2-1/8" 16 .065" 16WT212C 16WT212Z 16WT212S 16ST212A
2-1/8" 11 .120" 11WT212C 11WT212Z 11WT212S 11ST212A
2-1/2" 16 .065" 16WT250C 16WT250Z 16WT250S 16ST250A
2-1/2" 11 .120" 11WT250C 11WT250Z 11WT250S 11ST250A
3" 16 .065" 16WT300C 16WT300Z 16WT300S 16ST300A
3" 11 .120" 11WT300C 11WT300Z 11WT300S 11ST300A
3-1/2" 16 .065" 16WT350C 16WT350Z 16WT350S 16ST350A
3-1/2" 11 .120" 11WT350C 11WT350Z 11WT350S 11ST350A
4" 16 .065" 16WT400C 16WT400Z 16WT400S 16ST400A
4" 11 .120" 11WT400C 11WT400Z 11WT400S 11ST400A
5" 14 .083" 14WT500C 14WT500Z 14WT500S 14ST500A
5" 11 .120" 11WT500C 11WT500Z 11WT500S 11ST500A
6" 14 .083" 14WT600C 14WT600Z 14WT600S 14ST600A
6" 11 .120" 11WT600C 11WT600Z 11WT600S 11ST600A
8" 14 .083" 14WT800C 14WT800Z 14WT800S 14ST800A
8" 11 .120" 11WT800C 11WT800Z 11WT800S 11ST800A
10" 12 .109" 12WT1000C 12WT1000Z 12WT1000S 12ST1000A+
12" 12 .109" 12WT1200C 12WT1200Z 12WT1200S 12ST1200A+
14" 12 .109" 12WT1400C 12WT1400Z - -

Alloys

  • Carbon: 1006-1010 ERW
  • Aluminum: 6061/6063 Extruded
  • Stainless: 304
