Automotive Parts Manufacturer Central Vacuum System
American Vacuum has been supplying central vacuum cleaning systems to a large automotive parts manufacturer for over 15 years. Their current project requires an industrial central

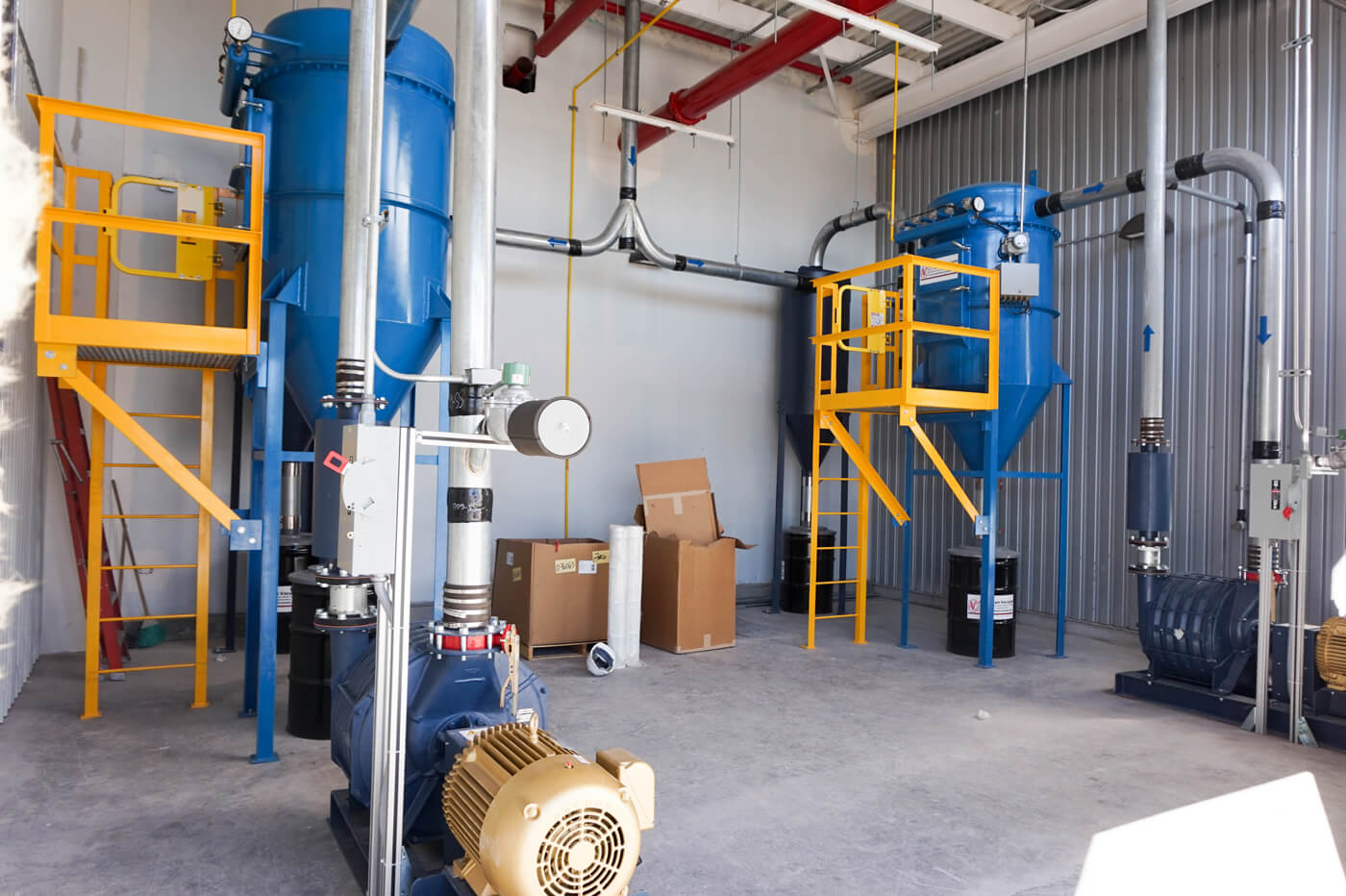

vacuum system for a very large expansion. They purchased two identical vacuum systems that rotate operation on a daily basis. The facility runs 24/7. The system recovers fiberglass dust from printed circuit board drillers and routers. The drilling and routing machines cannot operate without a vacuum system because the fiberglass dust from the drilling/routing machine will contaminate the circuit boards and also ruin very expensive drill bits. The central vacuum system components are connected with a crossover tube system and controlled by gate valves, as mentioned they rotate service every 24 hours. Each of the industrial vacuum systems has a stand-alone cyclone separator that dumps directly into 55-gallon drums for disposal.
Industrial Vacuum System Highlights:
- 40HP Cast Centrifugal Exhausters rotate operation every 24 hours
- Pulse-Jet filter receivers with Photohelic switches for “On Demand Cleaning”
- Over 900’ of tubing to cover this large expansion area
- Filter Receivers equipped with service platforms and ladders
- 5” Check valves installed for the crossover tube/fitting system
- System designed to handle (12) 1-1/2” hose connections simultaneously
- Systems # 7 & 8 installed at this facility
