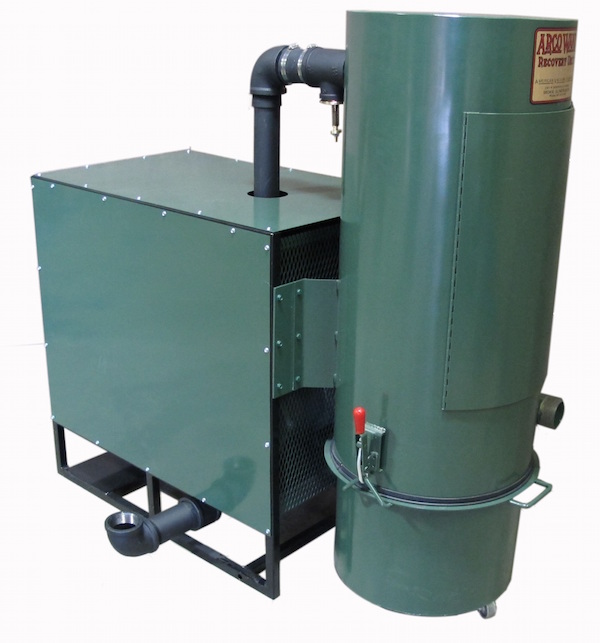

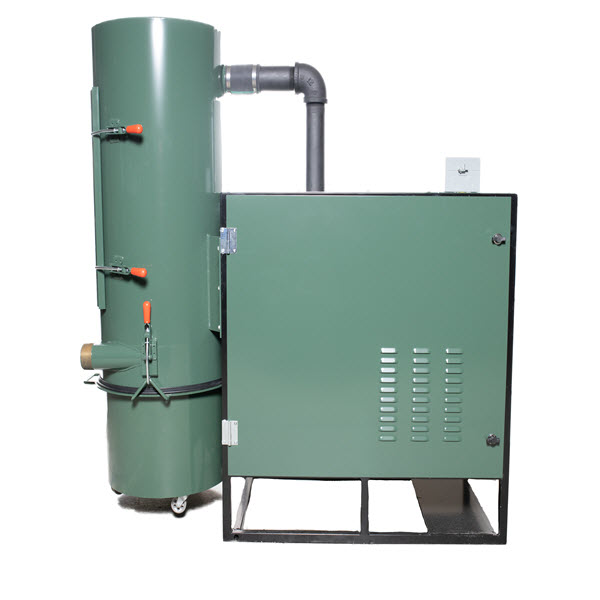

ARCO WAND 600 Stationary Vacuum

ARCO 600-S Stationary Vacuum units incorporate a positive displacement vacuum producer to handle your heavy-duty cleaning applications. Extremely high vacuum levels mean consistent suction power when picking up heavy material. Ideal for metal chip recovery, slurries, blast media & applications requiring long vertical lifts. These stationary units are ideal for material handling or small central systems.

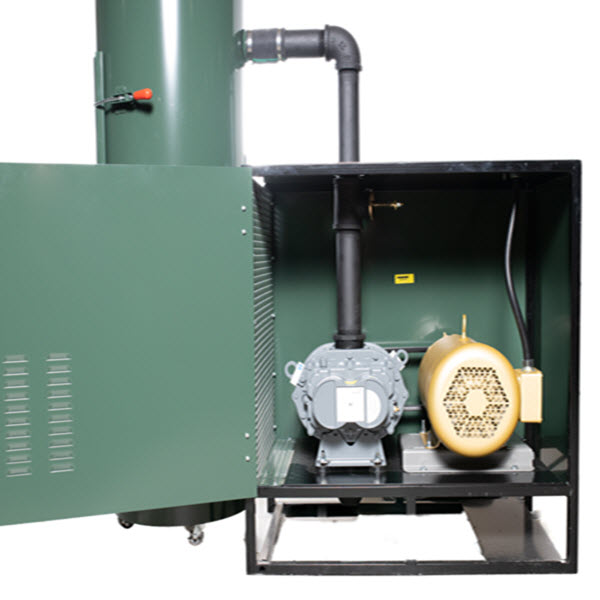

The Arco Wand 600 Series Stationary Vacuum is a positive displacement vacuum pump with a standard filter efficiency of 99%. This model also features a heavy duty P84 filter bag with a vacuum relief valve. The 600-S series has a guaranteed 24 hour per day operation. Optional features for this industrial vacuum also include HEPA discharge or inline filter, explosion proof motors and in-line separators of all sizes. Our industrial vacuums can collect a variety of materials. Click here to view a full list of the material types that we can move.

Features

  • Slow speed brushless motor means no armature or bearing problems
  • Guaranteed 24-Hour per-day operation
  • Patented filter cleaning mechanism
  • 1-1/2 HP Thru 10 HP TEFC General purpose motors
  • Vacuum relief valve prevents motor overload
  • Heavy duty cloth filter
  • Cast Iron Housing & Cast Steel Impellers
  • All units run under 85 DBA
  • Powder Coat finish
  • Portable systems available

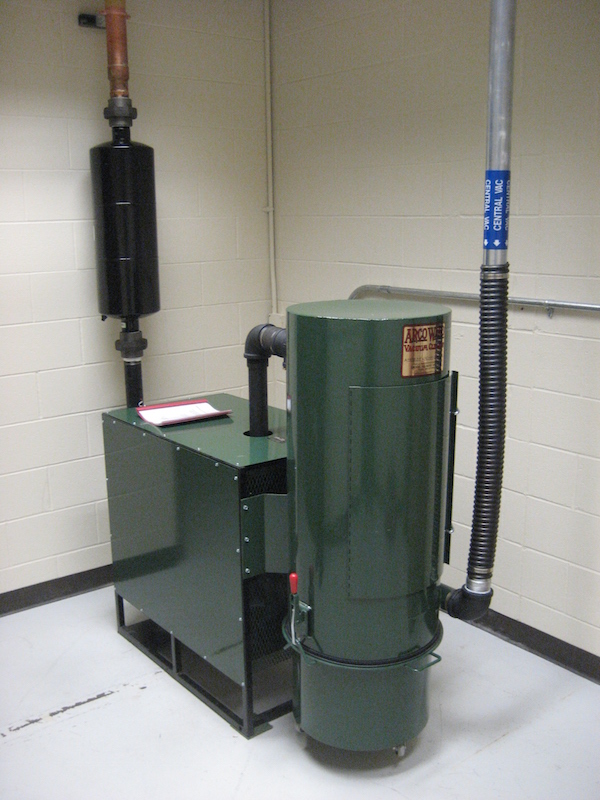

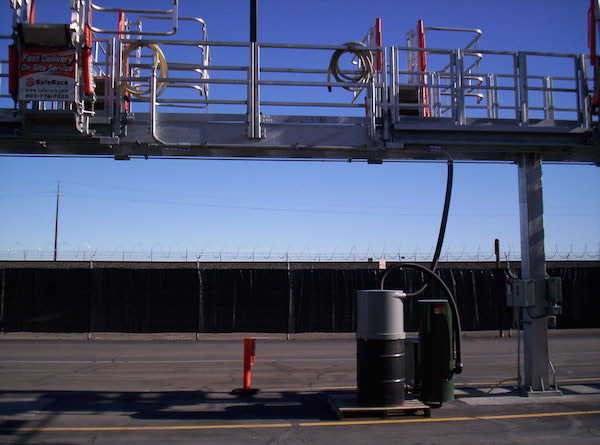

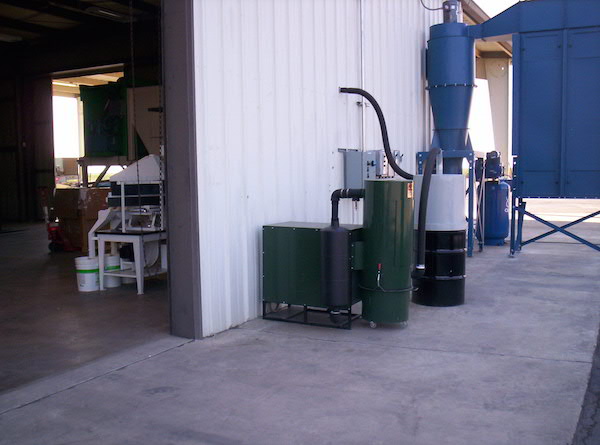

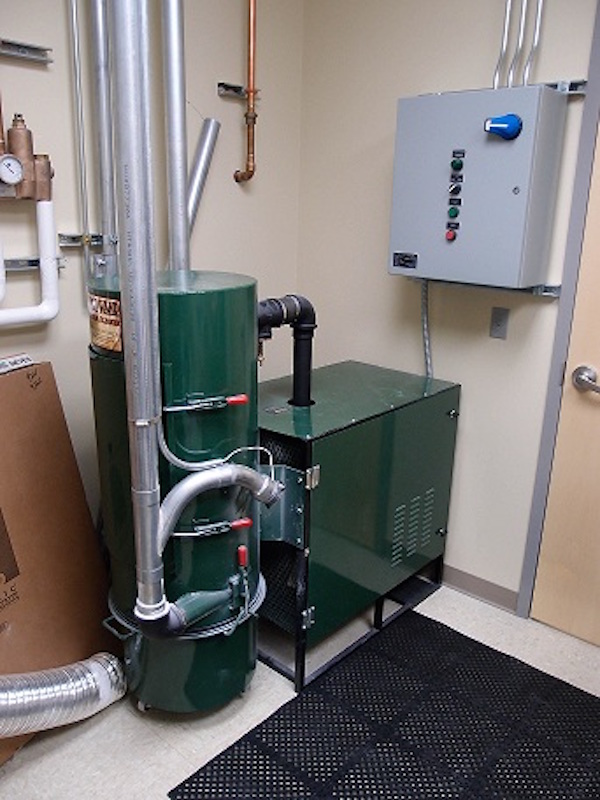

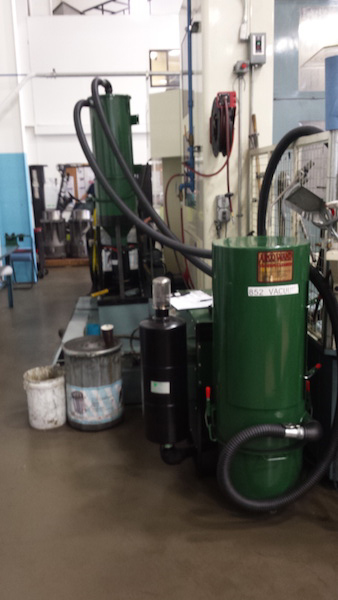

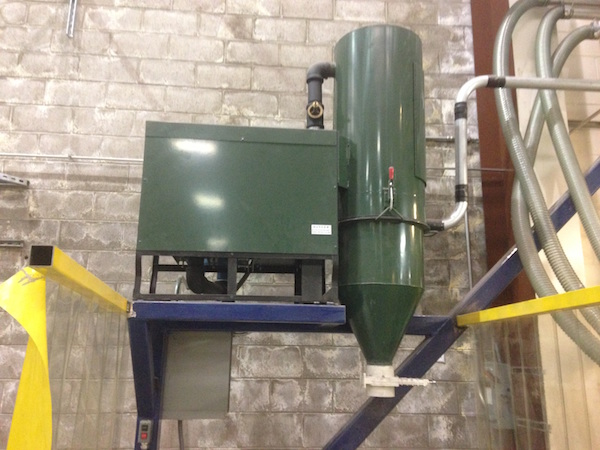

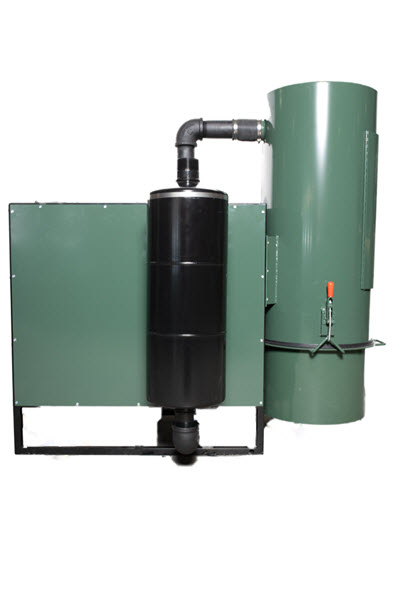

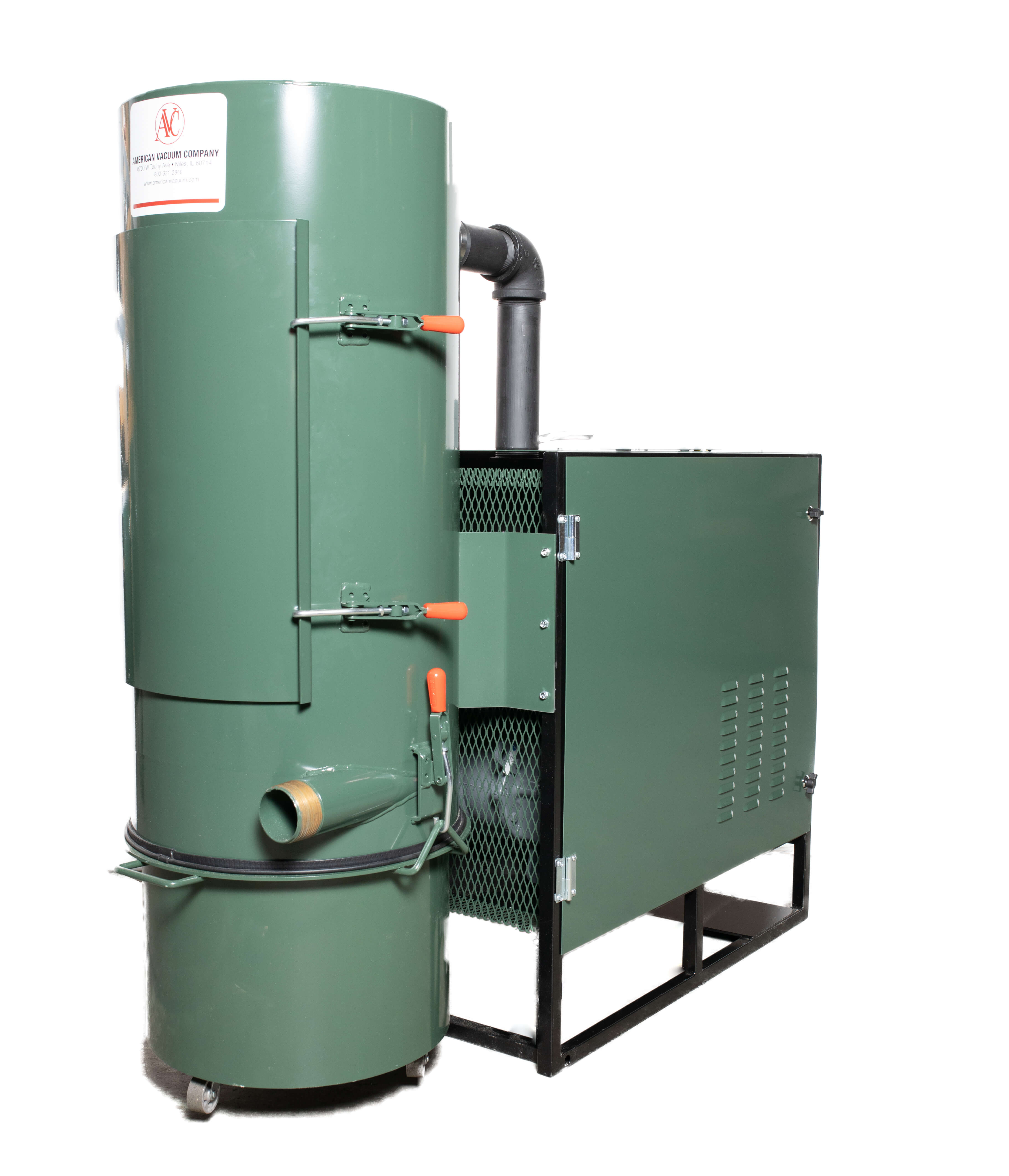

Photo Gallery

SPECIFICATIONS

MODEL    CAPACITY CFM WATERLIFT POWER NOISE LEVEL DIMENSION L,W,H WEIGHT
615-S 1.5 H.P. 11 Gallon 110 7.5" HG. 230-460/3 75 DBA 54" x 22" x 58" 410 LBS
620-S 2 H.P. 11 Gallon 125 8.0" HG. 230-460/3 77 DBA 54" x 22" x 58" 440 LBS
630-S 3 H.P. 11 Gallon 150 8.5" HG. 230-460/3 78 DBA 54" x 22" x 58" 490 LBS
650-S 5 H.P. 11 Gallon 175 8.5" HG. 230-460/3 78-80 DBA 54" x 22" x 58" 520 LBS
675-S 7.5 H.P. 11 Gallon 220 8.5" HG 230-460/3 86 DBA 54" x 22" x 58" 565 LBS

610-S 10 H.P.

11 Gallon 240 8.5 HG 230-460/3 87 DBA 54" x 22" x 58" 605 LBS

OPTIONS

  • HEPA Filtration available
  • Explosion-Proof Motors & NEMA 7/9 Starters
  • Separators for wet recovery & larger capacity
  • Central vacuum system tube & fittings
  • Special fine particulate filters
  • Complete assortment of 1-1/2" & 2" Hose & Cleaning Tools
